Stretch Beyond Ordinary With Our Revolutionary Fabric System
A revolutionary stretch fabric system made of foam and mineral core fibre, renowned for its fire resistance, thermal efficiency, and sound absorption capabilities.

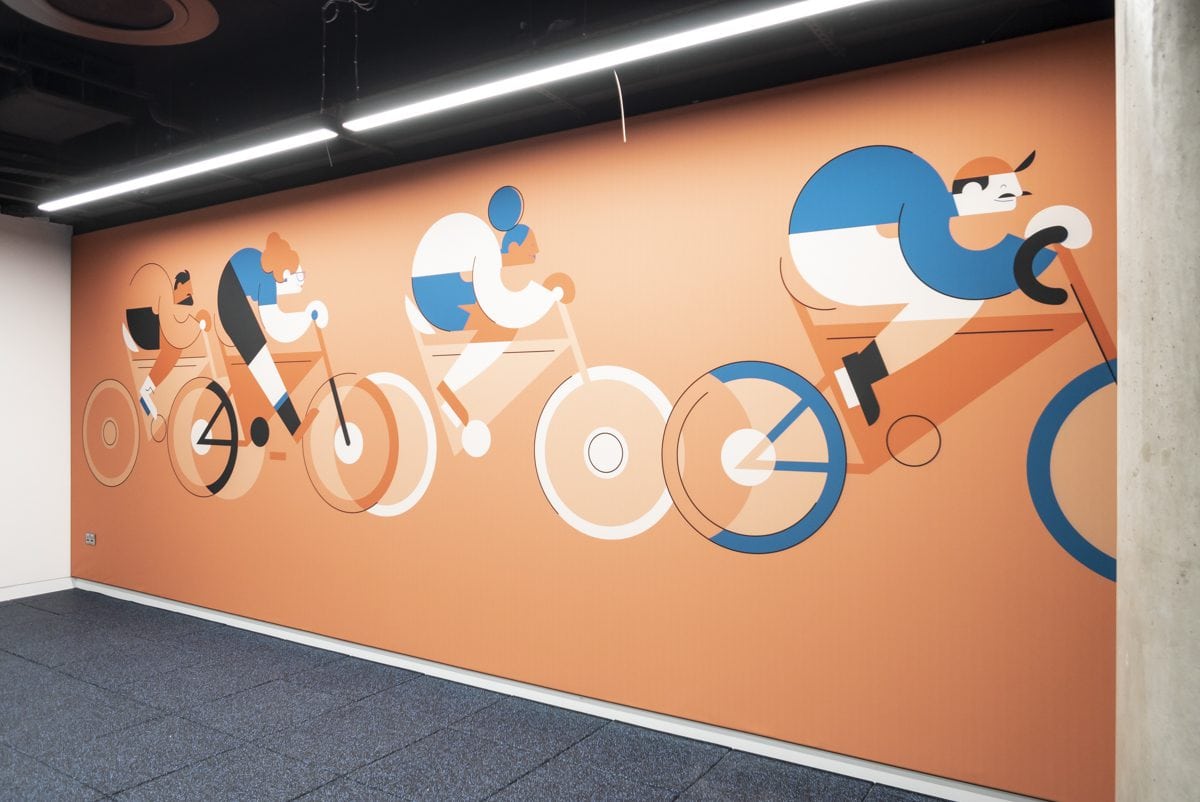

Choose from premium acoustic textiles and personalise with in-house graphics, effortlessly integrating switches, sockets, and lighting. Bass panels adapt to curved or angled walls, offering complete customisation options. Proudly crafted in Ireland and the UK.
For an improved auditory experience in any room, consider our range of acoustic wall panels.
| DIMENSIONS | Panel size: 1220 or 2800 mm Depth: 25 or 50 mm |
|
|---|---|---|
| TRACK | Extruded Rigid PVC-U available in | |
| CORE | Mineral core fiber, Polyester and Foam | |
| FABRIC |
|
|
| ACOUSTIC RESISTANCE | 25 mm Class C
50 mm Class A |
|
|---|---|---|

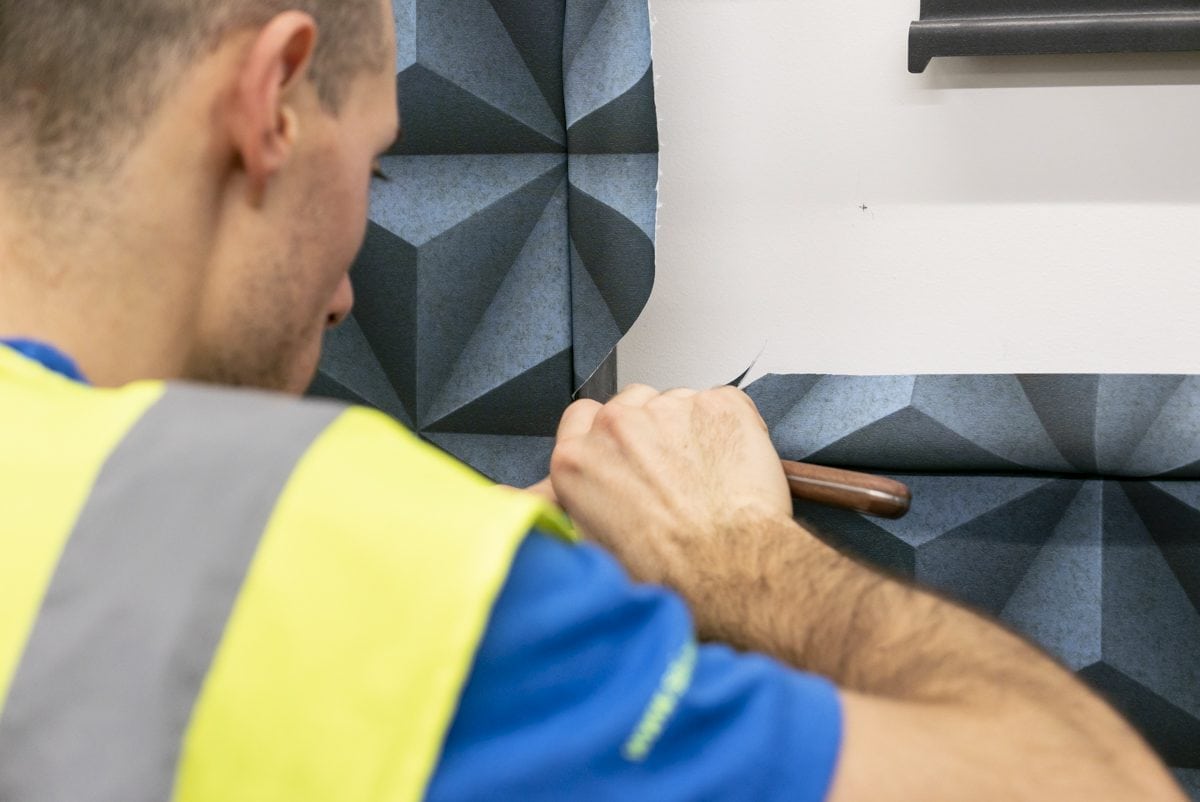

| INSTALLATION SYSTEM | Direct fix to wall. Built on site. Wall to wall and/or floor to ceiling. | |
| THERMAL CONDUCTIVITY |
|
|
| Mineral Fiber | BS EN 13501-1 A1-s1-d0 |
|---|---|
| Foam and Polyester | BS EN 13501-1 Class B s1 d0 |
| Stretch Fabric | BS EN 13501-1 Class B-S1-d0 We also will provide additional fire retardancy treatments to achieve this. |
CORE 1: FOAM
Basotect® is a lightweight, open cell melamine foam. It exhibits excellent fire resistance properties and as such does not flame or emit toxic fumes. Due to its excellent thermal and acoustic properties it has countless applications including acoustic wall and ceiling panels. This acoustic foam reaches Class O fire rating at 25 mm. It is a great performing acoustic core reaching Class B sound absorption at 50 mm (Class D at 25 mm).
The panels can be made as large as 2700 mm x 1200 mm and are perfect for floor to ceiling applications.
Due to the foams consistent colour it can be used without a fabric face as a simple solution for ceiling application.
Foam is manufactured in Germany – 100% of the foam scraps from manufacture of Vibe systems are recycled and reusable.
Density: 9 kg per m².
CORE 2: MINERAL FIBER
The mineral core is our highest absorbing acoustic panel, Due to its rigidity many offices tend to use this as multifunctional product by also using it as a pinboard.
It reaches Class A sound absorption at 50 mm (Class C at 25mm).
The Core achieves Class A fire rating to EN 13 501-1.
This core also comes in 2700 mm height so it is perfect for most floor to ceiling applications.
Density: 94kg per m².
CORE 3: POLYESTER
The polyester is a lightweight fiber product. It exhibits excellent fire resistance properties and as such does not flame or emit toxic fumes and is made from 60%+ recycled PET bottles. Due to its excellent thermal and acoustic properties, it has countless applications including acoustic baffles and acoustic wall panels.
Similar to the mineral core the polyester reaches Class A sound absorption at 50 mm (Class C at 25mm). The core achieves Euro Class B at EN 13501 We use our polyester core in our ceiling applications as it can then still be used over restaurant areas unlike mineral core absorbers.
Density: 2.5kg per m².
